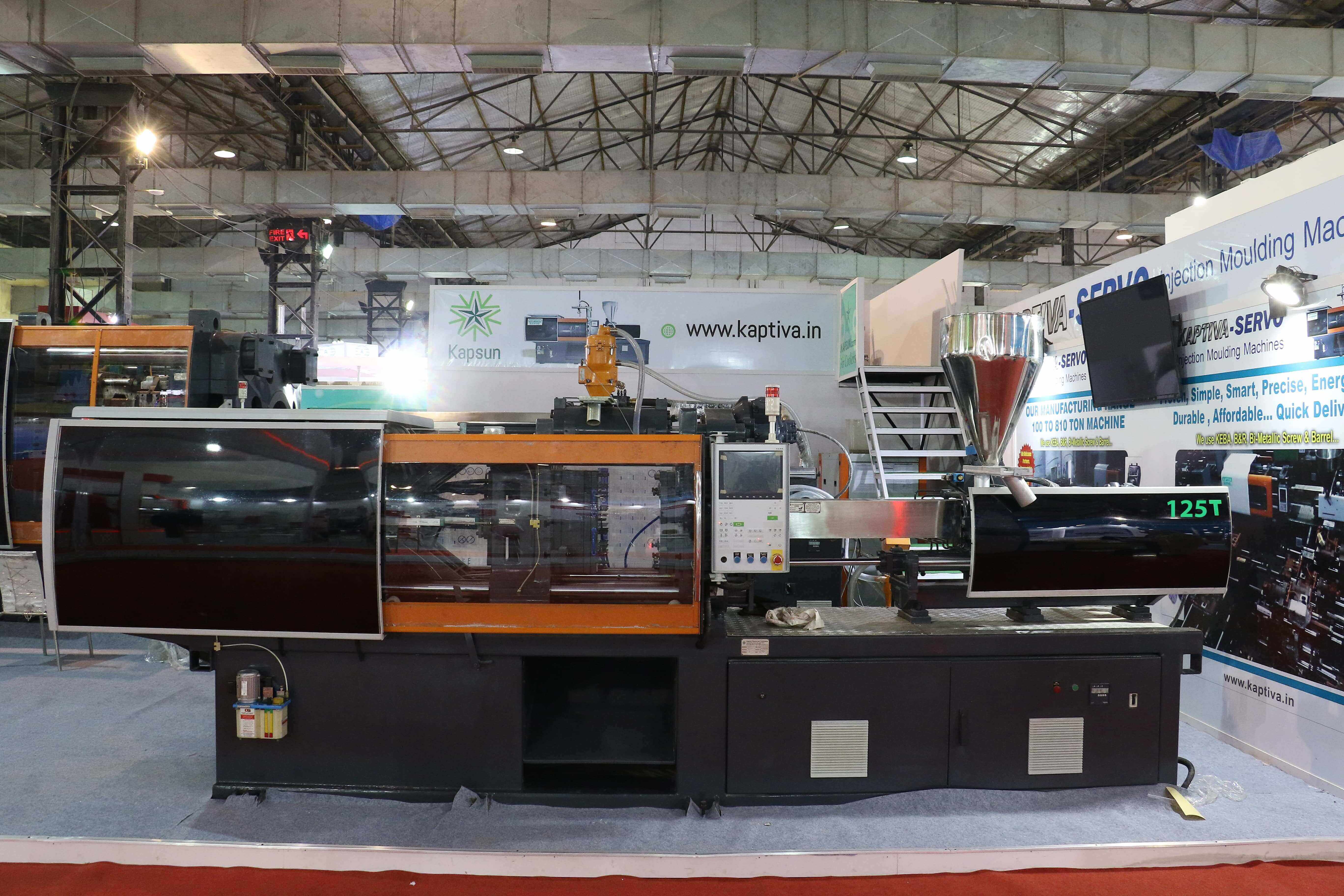

INJECTION MOLDING MACHINE - 125 T


Injection Molding Machine Features

  • Heavy Duty 'T' Slotted Platens for Quick Mould Changing
  • Automatic Lubrication
  • High Tensile Strength, Chrome Plated, Bigger Diameter Tie-rod
  • Double Block Air Ejection
  • Double Block Hydraulic Core Pull
  • Bimetallic Barrel & Hardened/Coated Screw
  • Water Manifolds
  • Part Drope Chute
  • Oil Filtration

TECHNICAL SPECIFICATIONS

Kaptiva Model Molding Machine - 125 T
Machine Code 125T/430-298 125T/430-501
Injection Unit Unit A B C A B C
Screw Diameter mm 35 40 45 40 45 50
L/D Ratio 23.45 20.52 18.24 22.12 19.66 17.70
Cylinder Hear Volume CC 154 201 254 249 315 389
Max Shot Wt. (PS) Gms 140 183 231 226 286 354
Screw Stroke mm 160 198
Injection Pressure Bar 1940 1485 1173 2015 1592 1290
Injection Rate gm/sec 125 163 207 151 191 235
Max. Screw Speed RPM 240 240
Plasticizing Rate (GPPS) gm/sec 14 17 23 15 22 26
Clamping Unit Unit A B C A B C
Clamping Force Kn 1250
Mold Opening Stroke mm 410
Maximum Daylight mm 840
Mold Height (Min / Max) mm 180 / 430
Platen Size (HxV) mm 635X635
Tie bar distance mm 430X430
Locating Ring Diameter mm 125
Ejector Stroke mm 150
Ejector Force Kn 45
General Unit A B C A B C
Total Heating Capacity Kw 9 11
Electric Motor ** KW 18.5 22
Total Connected Load (Induction) kw 27.5 33
Oil Tank Capacity Ltr 220
Machine Weight Without Oil* Tons 4.1
Machine Dimension (L x W x H) Meter 4.7 x 1.5 x 2.2
